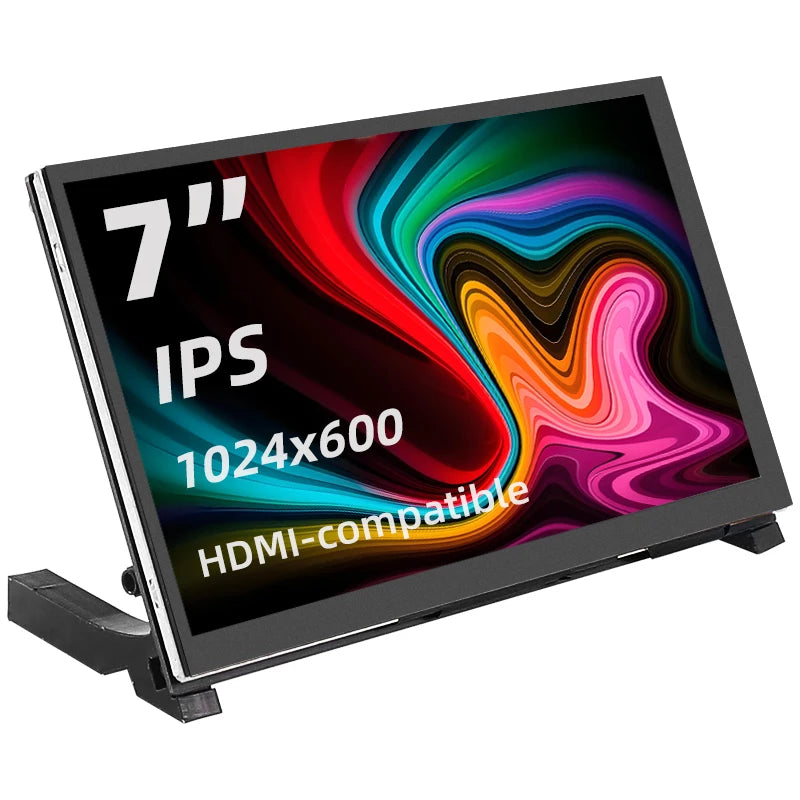

7 Inch Portable Display IPS LCD Capacitive Touch Screen 1024x600 Monitor Optional Speakers for Raspberry Pi Laptop PC

If you have problem in using the product,please go to this link:

http://www.lcdwiki.com/7inch_HDMI_Display-H

IPS Full Angle Display

1. The viewing Angle is large
2.. True color
3. Dynamic picture quality is excellent
4. Energy saving and environmental protection

1024X600 HD Vision

1.Resolution for hd 1024X600 dot matrix
2. It is more delicate than 800X480 ordinary screen

Tempered Glass Touch Panel

Hardness up to 6H, more durable and more scratch resistant

External Audio Output Interface

1. 3.5mm external audio interface

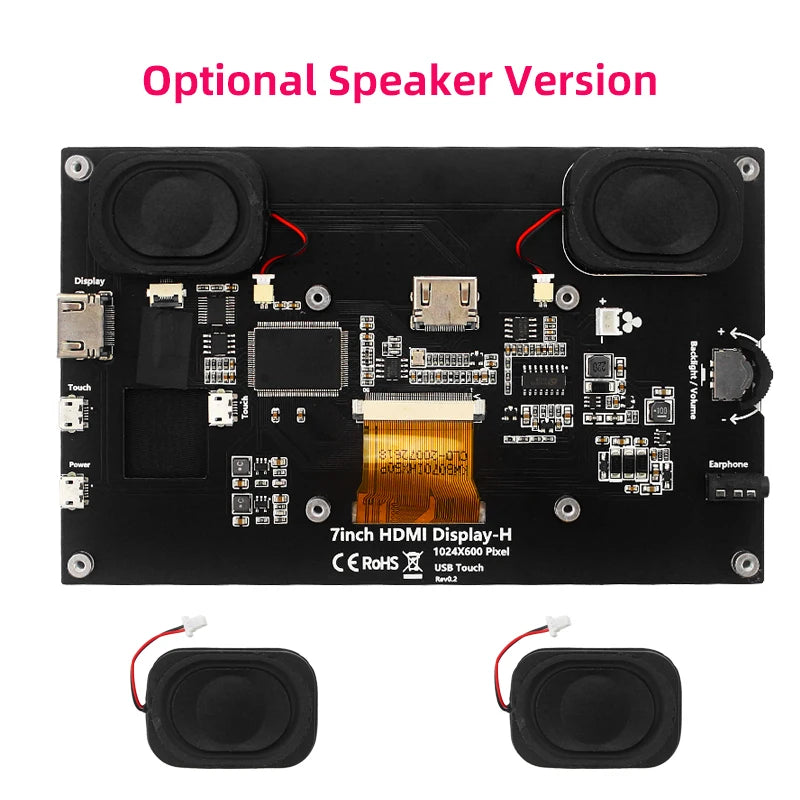

2. Optional stereo dual speaker output quality sound

Used as a Mini PC monitor

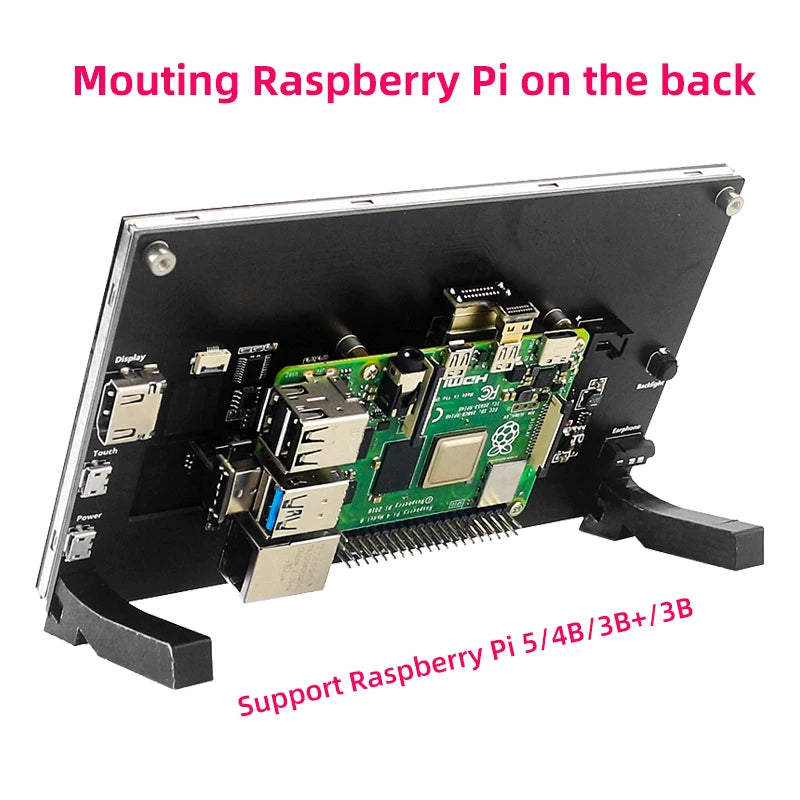

1. Support Raspberry Pi, Banana Pi, Jetson Nanp,Orange Pi and other mainstream development board
2. Support Raspberry Pi OS Kali Linux, ubuntu,single touch plug and play without driver.

Note: Please use our recommended system for touch screen. If you use other systems, it may not have touch function or may not work. You need to configure it yourself. Because there are many systems that the Raspberry Pi can use, we can’t make every system compatible with our touch screen.

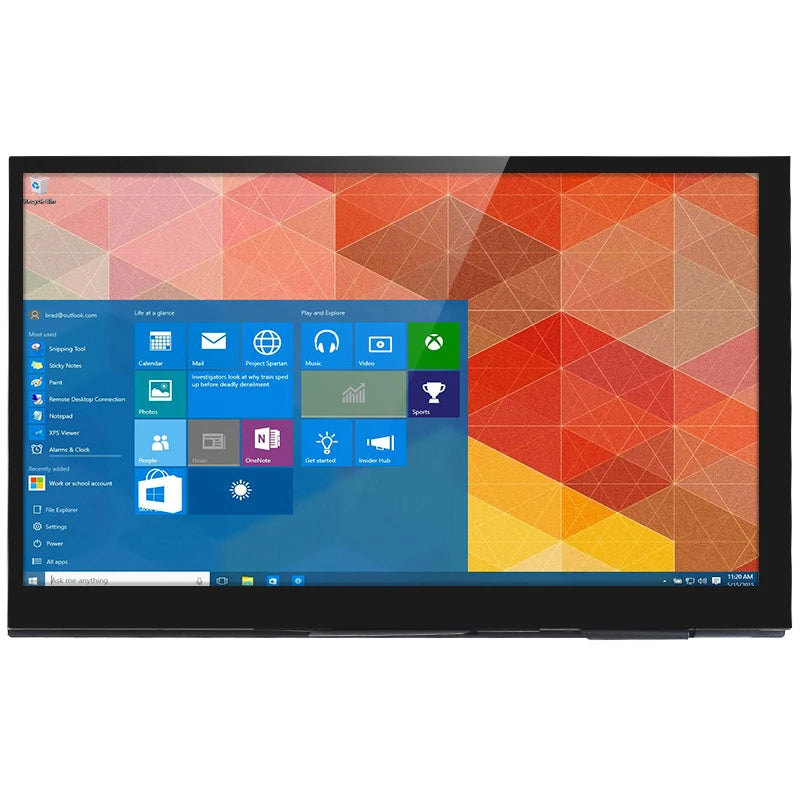

Used as Computer Display

1. Support Win11/10/win8/win7 system, support five-point touch plug and play driver

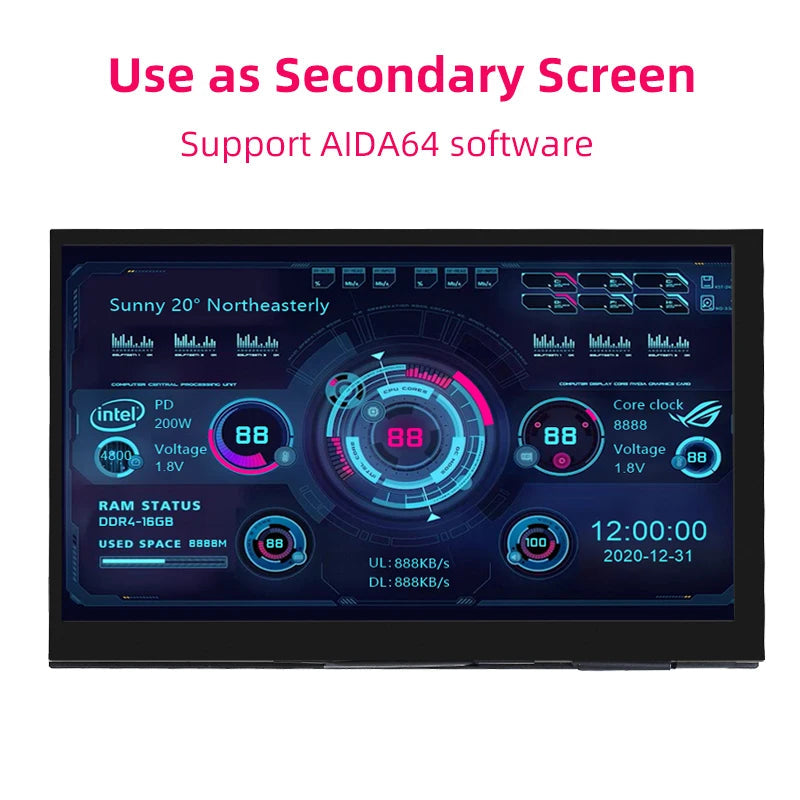

2. Use as secondary screen, support AIDA64 software

Used as Games Monitor

Support for Xbox360,for PS4, for Switch etc
Note: when use for game player, there is not touch function.

Specification

1. Screen Type: IPS screen
2. Screen Size: 7.0 inch
3. Resolution : 1024 x 600
4. Backlight adjustment: Independent button to adjust

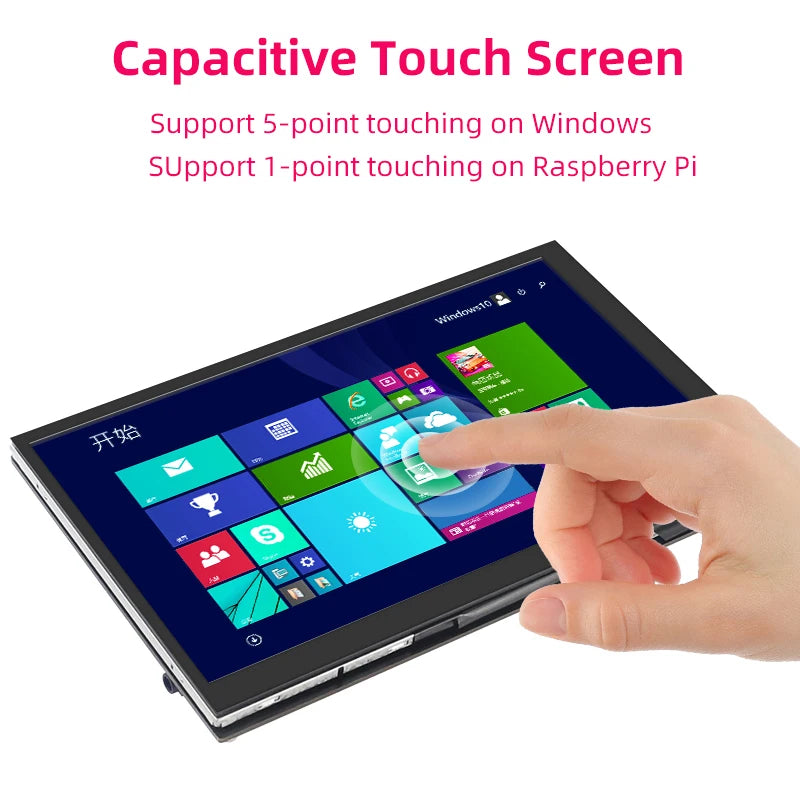

5. Touch Screen Type: Capacitive Touch Screen
6. Touch IC: GT911
7. Power: MicroUSB（5V/2A）
8. Video Input Interface: HDMI-compatible
9. Audio Output Interface: 3.5mm Audio Interface
10. Module Size (L x W x H): 164.90 × 102.00 × (14.25±0.2)mm
11. Product weight (including package) 510g approx

① HDMI-compatible Interface: Input HDMI-compatible signal, using HDMI-compatible cable connection, commonly used to connect to the computer，The maximum supported resolution is 1920x1080
② Touch Interface: Transfer touch signal, connect with micro USB cable, provide touch and power supply function, commonly used to connect computer
③ Power Interface: Connect to the power supply and use micro USB cable to connect. Only power supply function is provided
④ Touch Interface: Transmit touch signal, connect with micro USB cable, provide touch and power supply function, commonly used to connect Raspberry Pi
⑤ 3.5mm Audio Interface: Output audio signal, connect audio output device, such as headphones
⑥ Backlight Adjustment Button: Adjust the backlight brightness of the display screen. With each click, the backlight brightness increases by 10, the maximum increases to 100, and then starts from 0，Press and hold for 3 seconds to turn off the backlight
⑦ Cooling Fan Interface: Connect cooling fan
⑧ HDMI-compatible Interface: Input HDMI-compatible signal, connect with HDMI-compatible adapter, only used to connect to the Raspberry Pi，The maximum supported resolution is 1024x600

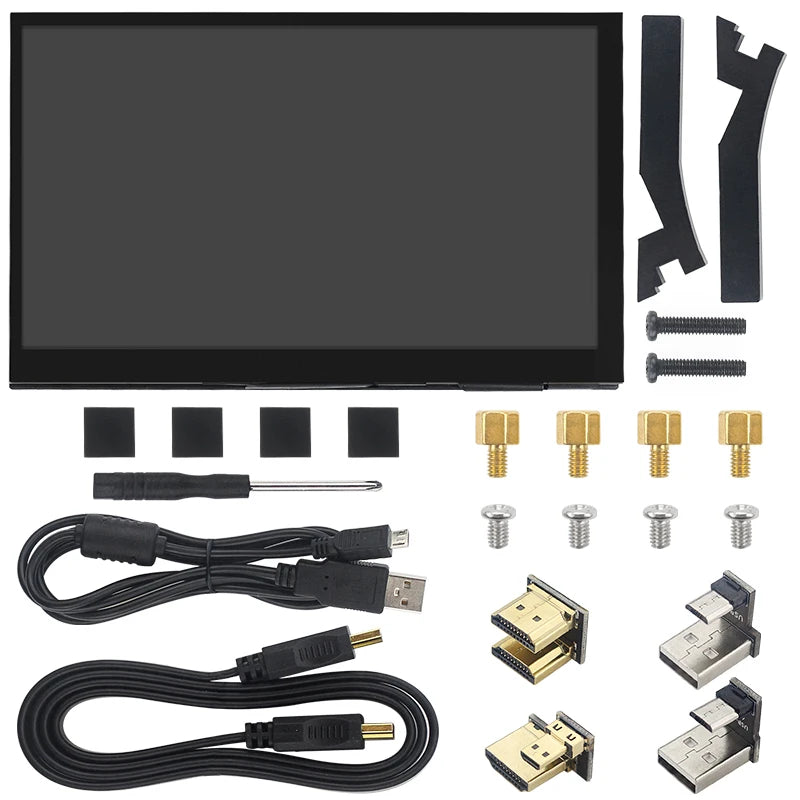

Packing List

Without Speaker Version

1 x 7 Inch IPS Touch Screen
2 x Holder Feet
1 x HDMI-compatible to HDMI-compatible Cable
1 x USB to Micro USB Cable
1 x HDMI-compatible to Micro HDMI-compatible Conterter
1 x HDMI-compatible to HDMI-compatible Conterter
2 x USB to Micro USB Converter
1 x Screwdriver
1 set x Screws and Nuts
(not include Raspberry Pi)
